GW100 Series UV and Dual-Band Infrared Flame Detector

Equipped with a high-speed,low-power,high-performance 32-bit precision data processing chip inside;

Utilizes imported low-noise Ultraviolet photoelectric sensors and self-developed infrared pyroelectric sensors;

Multilevel sensitivity suitable for various applications,with a low maintenance costs;

Detection angles:Infrared>100 degree;Ultraviolet>120 degree,with a detection distance up to 40 meters and more along the axis;
The advanced algorithms ensure accurate flame detection and the ability of eliminating false alarms;

Certified with CCC and explosion-proof of CNEX,SIL2 & SIL3 for ultraviolet type only,suitable for various industrial environments;
Protection rating reach IP66,IP67(ultraviolet type only).

Category:
Contact Us

Description

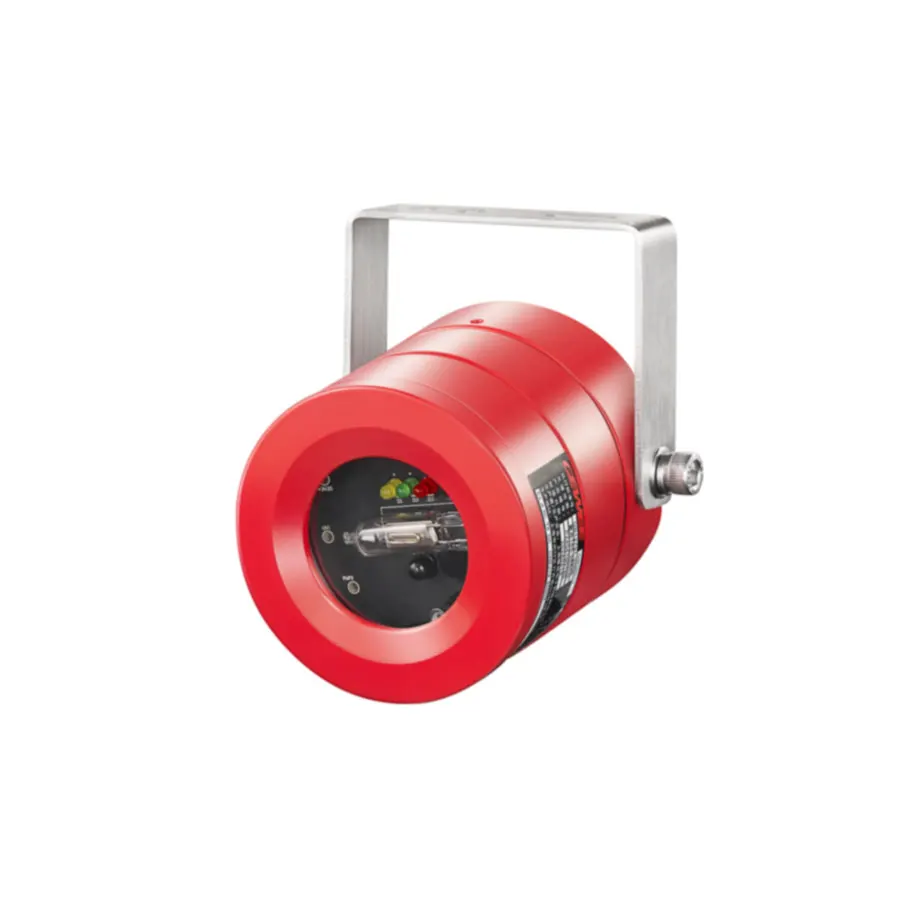

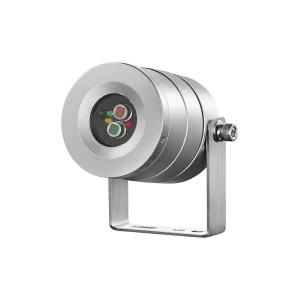

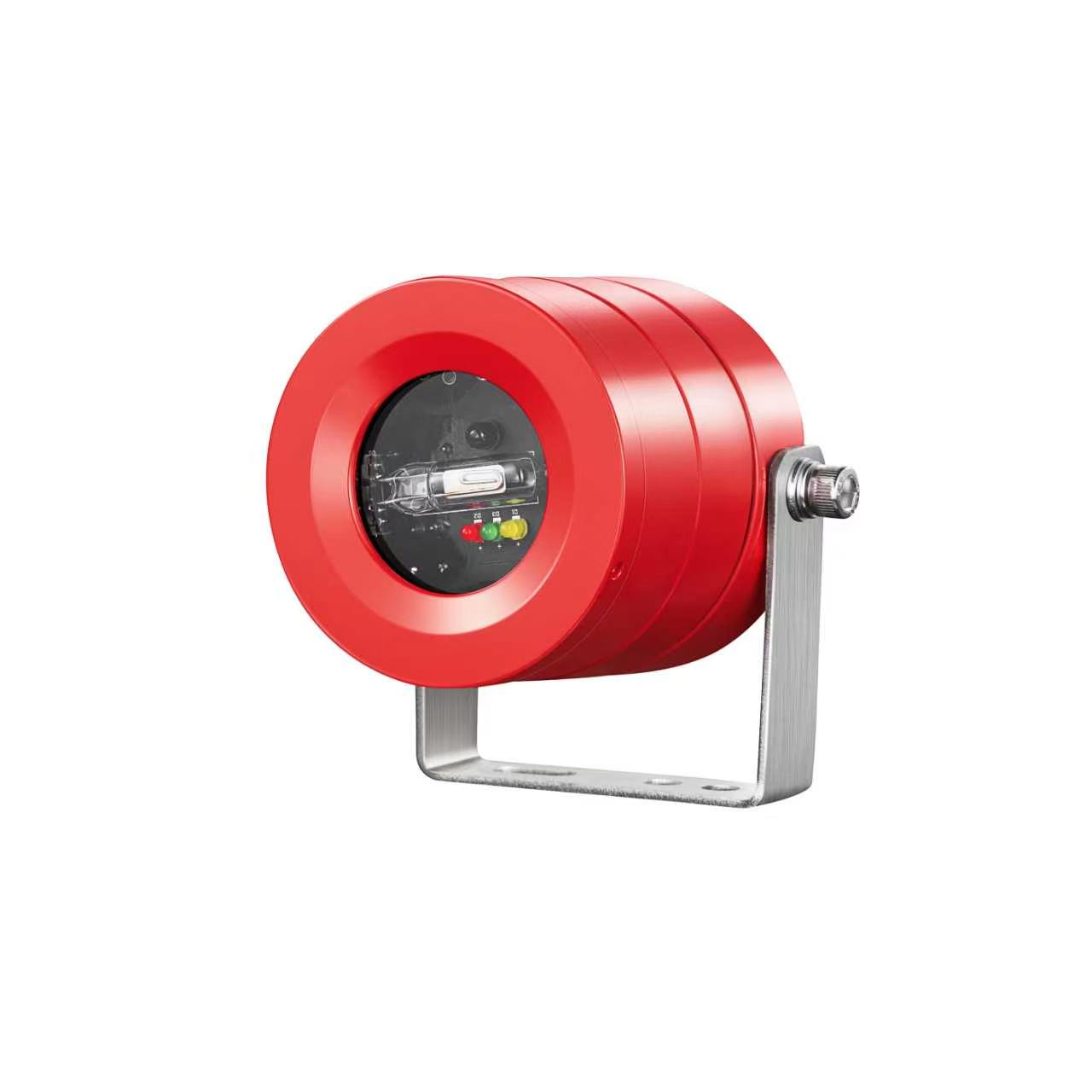

Product Name GW100UV Ultraviolet Flame Detector GW100IR2N Dual-Band Infrared Flame Detector

Product Images

 Flame Detectors
Performance Characteristics Wide Field of View,Long Distance Wide Field of View,Short Distance
Fields of Application Industrial Workshops Machines,Equipment,Small Spaces
Detection Angle ≥120° ≥100°
Fire Source Situation Detection Distance (Unit: m) Detection Distance (Unit: m)
Gasoline





0.1m² Fire Disk (0.3m x 0.3m)

 40 40
n-Heptane 50 45
Diesel Fuel 40 40
Kerosene 40 40
Aviation Kerosene 40 40
Alcohol 40 35
Isopropanol 40 35
Methanol 35 30
Polypropylene 25 20
Paper 30 30
Methane 0.5m(h) x 0.2m(w) Gas Flame 25 35
LPG Propane 25 /
Hydrogen 25 /
Ammonia 20 /
Silane 0.3m Flame 15 /
Aluminum and Magnesium Metal 15 /
The size of the Fire Disk Response Time
0.3m x 0.3m Gasoline Fire ≤20 Seconds (High-Speed Type ≤ 1 Seconds)
0.7m x 0.7m Gasoline Fire ＜10 Seconds
Hydrogen Flame or Metal Flame /
Output Mode 2 Relays Output
Working Voltage DC24±6V
Working Environment -10℃~55℃ (Ordinary Type) or -40℃~70℃ (Enhanced Type) 0~95%RH (Non-Condensing)
Explosion Proof Certification Exd II CT6 Gb
Ingress of Protection IP66/IP67
Electrical Interface 1 x NPT 1/2
Housing Material Cast Aluminum Cast Aluminum
Dimensions 72mm x 72mm x 96mm 60mm x 60mm x 68mm
Weight 0.5kg 0.4kg
Certification CCC、SIL2、SIL3 CCC
