Description
| Product Name | GW300UVIR3 Quadruple-Band Infrared/Ultraviolet Composite Fire Detector | |

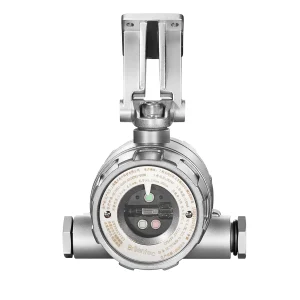

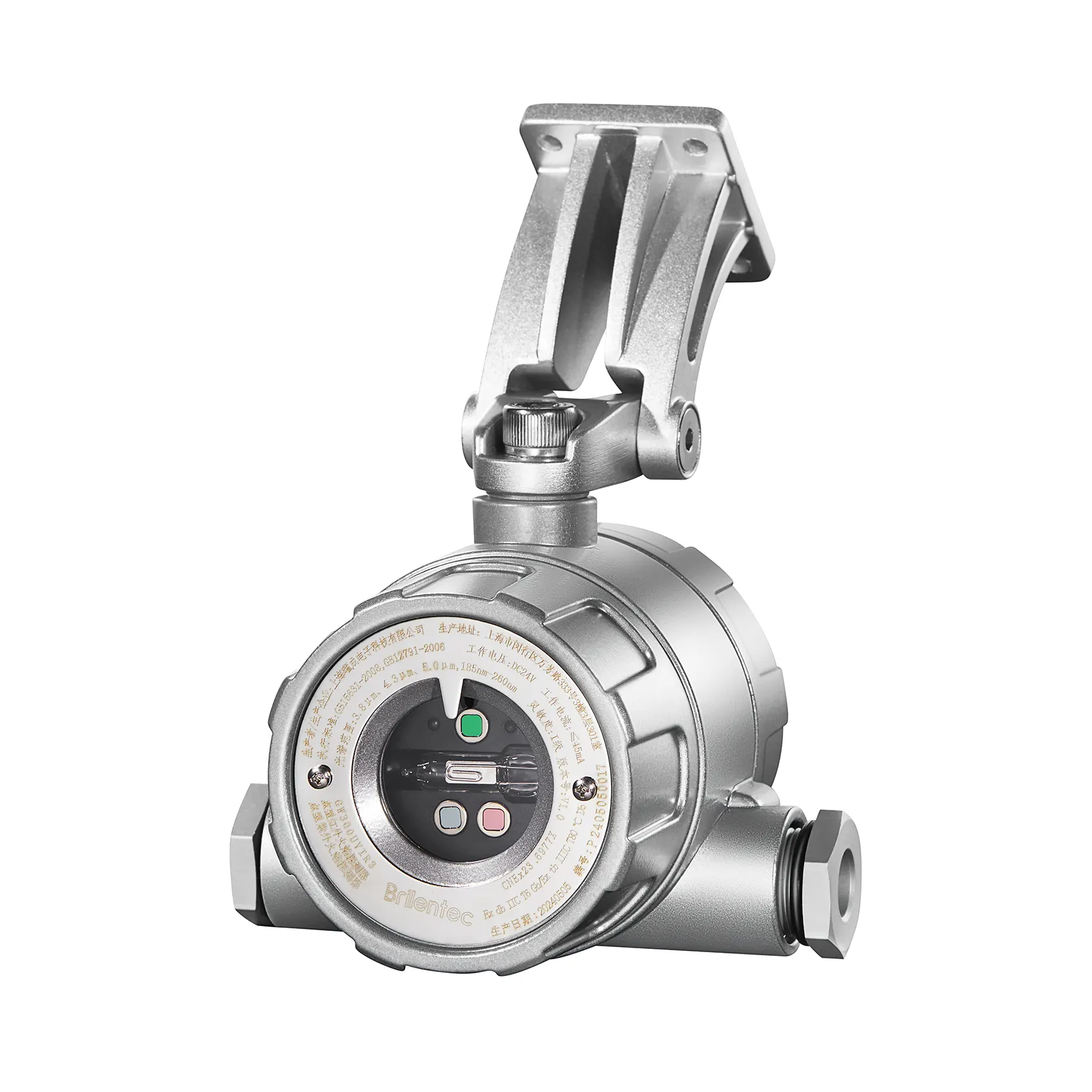

| Product Images |  |
|
| Performance Characteristics | Wide Field of View,Long Distance,High Reliability | |
| Fields of Application | Tunnels,Chemical Industry,Industrial Workshops,etc | |
| Detection Angle | Ultraviolet≥ 120°,IR ≥ 110° | |
| Fire Source Situation | Detection Distance (Unit: m) | |
| Gasoline | 0.1m2 Fire Disk(0.3m x 0.3m) | 45 |
| n-Heptane | 55 | |
| Diesel Fuel | 45 | |
| Kerosene | 45 | |
| Aviation Kerosene | 45 | |
| Alcohol | 45 | |
| Isopropanol | 45 | |
| Methanol | 40 | |
| Polypropylene | 30 | |
| Paper | 35 | |
| Methane | 0.5m(h) x 0.2m(w) Gas Flame | 30 |
| LPG Propane | 30 | |
| Hydrogen | 30 | |
| Ammonia | 25 | |
| Silanes | 0.3m Flame | 20 |
| Aluminum and Magnesium Metal | 20 | |
| The size of the Fire Disk | Response Time | |
| 0.3m x 0.3m Gasoline Fire | ≤20 Seconds(High-Speed Type ≤ 1 Seconds) | |
| 0.7mx0.7m Gasoline Fire | ＜10 Seconds | |
| Hydrogen Flame or Metal Flame | / | |
| Output Mode | 2 Relays Output/4~20mA Current Output | |
| Working Voltage | DC24±6V | |
| Working Environment | -10°C~55°C (Ordinary Type) or -40°C~70°C (Enhanced Type) 0~95%RH (Non-Condensing) | |
| Explosion-Proof Certification | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db | |
| Ingress of Protection | IP66/IP67 | |
| Electrical Interfaces | 2 x NPT 3/4 | |
| Housing Material | Cast Aluminum (Stainless Steel Optional) | |
| Dimentions |
172mm x 152mm x 132mm |
|
| Weight | 1.1kg | |
| Certification | CCC、SIL2、SIL3 | |
