Description
| Product Name | GW800IR2 Dual-Band Infrared Flame Detector (Ordinary Type) | GW800IR2 Dual-Band Infrared Flame Detector (Tunnel-Specific) | |
| Product Images |  |  | |
| Performance Characteristics | Wide Field of View | Wide Field of View,Long Distance | |
| Fields of Application | Industrial Workshops | Tunnels,Industrial Workshops | |
| Detection Angle | ≥110° | ≥110° | |
| Fire Source Situation | Detection Distance (Unit: m) | Detection Distance (Unit: m) | |
| Gasoline | 0.1m2 Fire Disk (0.3m x 0.3m) | 40 | 55 |
| n-Heptane | 50 | 60 | |
| Diesel Fuel | 40 | 45 | |
| Kerosene | 40 | 45 | |
| Aviation Kerosene | 40 | 45 | |
| Alcohol | 35 | 40 | |
| Isopropanol | 35 | 40 | |
| Methanol | 30 | 35 | |
| Polypropylene | 15 | 20 | |
| Paper | 30 | 35 | |
| Methane | 0.5m(h) x 0.2m(w) Gas Flame | 35 | 40 |
| LPG Propane | / | / | |
| Hydrogen | / | / | |
| Ammonia | / | / | |
| Silanes | 0.3m Flame | / | / |
| Aluminum and Magnesium Metal | / | / | |
| The size of the Fire Disk | Response Time | ||
| 0.3m x 0.3m Gasoline Fire | ≤20 Seconds (High-Speed Type ≤ 1 Seconds) | ||
| 0.7mx0.7m Gasoline Fire | ＜10 Seconds | ||
| Hydrogen Flame or Metal Flame | / | ||
| Output Mode | 2 Relays Output/4~20mA Current Output | ||
| Working Voltage | DC24±6V | ||
| Working Environment | -10°C~55°C (Ordinary Type) or -40°C~70°C (Enhanced Type) 0~95%RH (Non-Condensing) | ||
| Explosion-Proof Certification | Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db | ||
| Ingress of Protection | IP66/IP67 | ||
| Electrical Interfaces | 2 x NPT 3/4 | ||
| Housing Material | Cast Aluminum (Stainless Steel Optional) | Cast Aluminum (Stainless Steel Optional) | |
| Dimensions | 172mm x 152mm x 132mm | 172mm x 152mm x 132mm | |
| Weight | 1.1kg | 1.1kg | |
| Certification | CCC、SIL2、SIL3 | CCC、SIL2、SIL3 | |

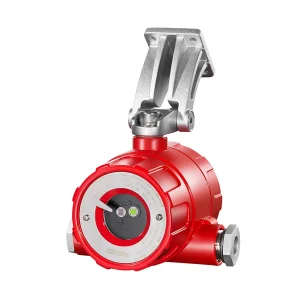

GW800IR2
Dual-Band Infrared Flame Detector (Ordinary Type)
The GW800IR2 detector is a dual-band infrared flame detector designed for industrial workshops and other similar environments. It utilizes highly reliable infrared sensors and a robust hardware design, making it suitable for a wide range of industrial applications.

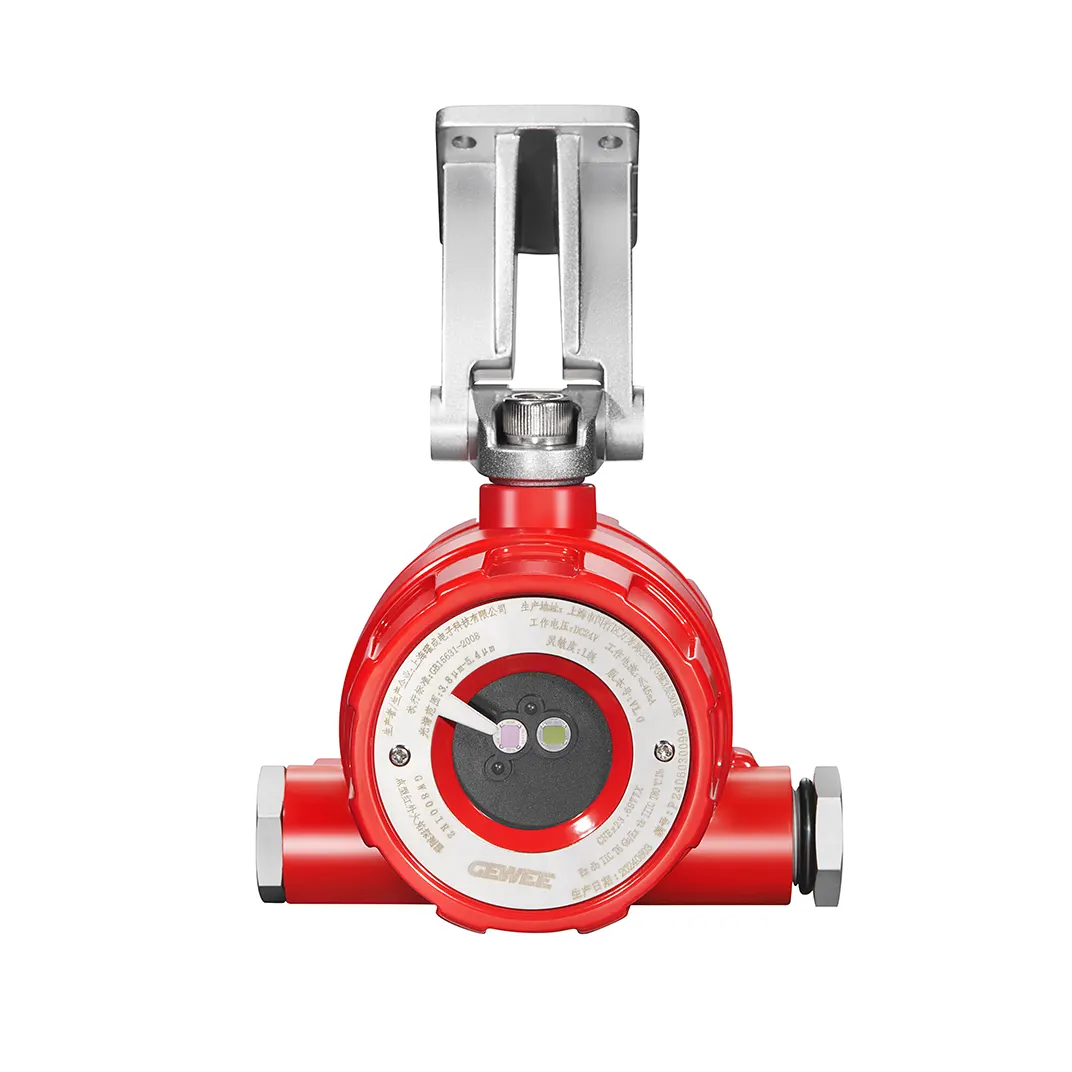

GW800IR2
Dual-Band Infrared Flame Detector (Tunnel-Specific)
The GW800IR2 Tunnel-Specific detector is a dual-band infrared flame detector optimized for tunnel environments. It offers a longer detection range and a wider field of view compared to the ordinary type, making it ideal for monitoring large spaces like tunnels, industrial workshops, and other facilities.
Both detectors incorporate advanced technologies, including dual microprocessors for fast and reliable performance, artificial intelligence software for robust system stability, and extensive network testing and environmental strengthening to ensure safety and reliability in industrial applications.
