Description
| Product Name | GW810IR3 Triple-Band Infrared Flame Detector | GW810UVIR2 Triple-Band Infrared/Ultraviolet Composite Flame Detector | |
| Product Images |  |
|
|
| Performance Characteristics | Wide Field of View,Long Distance,High Reliability | Wide Field of View,Long Distance,High Reliability | |
| Fields of Application | Tunnels,Chemical Industry,Industrial Workshops,etc | Tunnels,Chemical Industry,Industrial Workshops,etc | |
| Detection Angle | ≥ 110° | Ultraviolet≥ 120°,IR ≥ 110° | |
| Fire Source Situation | Detection Distance (Unit: m) | Detection Distance (Unit: m) | |
| Gasoline | 0.1m2 Fire Disk (0.3m x 0.3m) | 50 | 45 |
| n-Heptane | 55 | 55 | |
| Diesel Fuel | 45 | 45 | |
| Kerosene | 45 | 45 | |
| Aviation Kerosene | 45 | 45 | |
| Alcohol | 45 | 45 | |
| Isopropanol | 45 | 45 | |
| Methanol | 40 | 40 | |
| Polypropylene | 30 | 30 | |
| Paper | 35 | 35 | |
| Methane | 0.5m(h) x 0.2m(w) Gas Flame | 30 | 30 |
| LPG Propane | / | 30 | |
| Hydrogen | / | 30 | |
| Ammonia | / | 25 | |
| Silanes | 0.3m Flame | / | 20 |
| Aluminum and Magnesium Metal | / | 20 | |
| The size of the Fire Disk | Response Time | ||
| 0.3m x 0.3m Gasoline Fire | ≤20 Seconds (High-Speed Type ≤ 1 Seconds) | ||
| 0.7mx0.7m Gasoline Fire | ＜10 Seconds | ||
| Hydrogen Flame or Metal Flame | / | ||
| Output Mode | 2 Relays Output/4~20mA Current Output | ||
| Working Voltage | DC24±6V | ||
| Working Environment | -10°C~55°C (Ordinary Type) or -40°C~70°C (Enhanced Type) 0~95%RH (Non-Condensing) | ||
| Explosion-Proof Certification | Ex db IIC T6 Gb/Ex tb IIIC T80℃Db | ||
| Ingress of Protection | IP6/IP67 | ||
| Electrical Interfaces | 2 x NPT 3/4 | ||
| Housing Material | Cast Aluminum (Stainless Steel Optional) | Cast Aluminum (Stainless Steel Optional) | |
| Dimentions | 172mm x 152mm x 132mm | 172mm x 152mm x 132mm | |
| Weight | 1.1kg | 1.1kg | |
| Certification | CCC、SIL2、SIL3 | CCC、SIL2、SIL3 | |

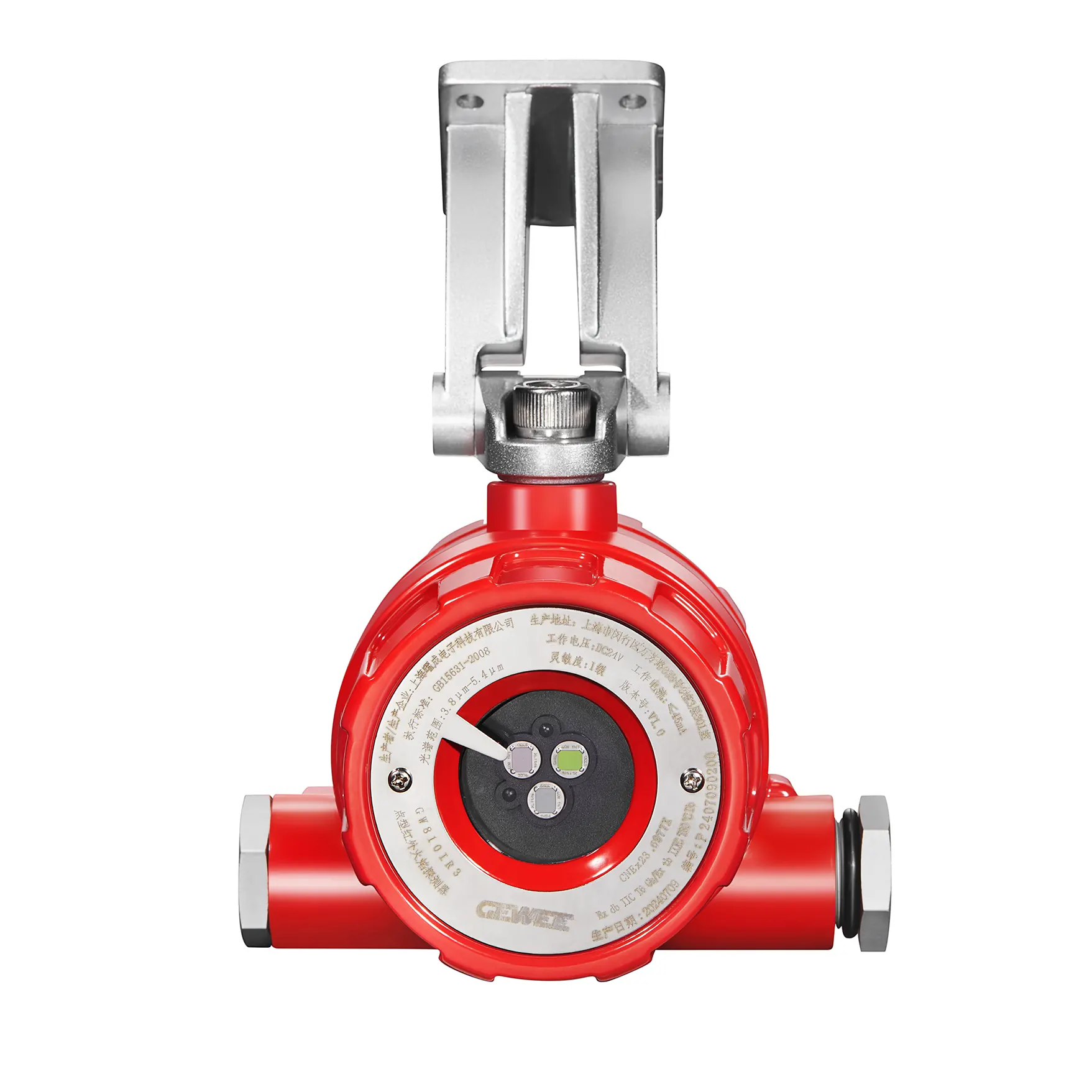

GW810IR3
Triple-Band Infrared Flame Detector
GW810IR3 Detector is a multi-spectrum,triple infrared,and flame detector.It utilizes highly
reliable infrared sensors and hardware circuit design,making it suitable for most industrial
environments.With years of market testing and customer validation,it is an extremely
successful and reliable flame detector.
Superior Technology:Dual microprocessors enable fast and reliable performance.The main microprocessor
executes high-speed digital sampling and signal processing calculations,while the subordinate
microprocessor handles sensor data,communication,and self-diagnostics.The GW810IR3 detector has a
detection range of over 60 meters(200 feet)when detecting a 0.1-square-meter(1-square-foot)heptane
reference fire source (with highly sensitive settings),offering a larger field of view compared to most UV/IR
detectors.This means that fewer detectors can be used to cover an area compared to detectors from other
manufacturers.
The GW810IR3 detector incorporates artificial intelligence software,providing robust system stability.It
utilizes FFT algorithm and neural network algorithm (industry-leading self-learning and trend analysis
algorithms)and possesses the ability for environmental self-learning and adaptive compensation algorithms.
It has undergone extensive testing with a large number of detector networks in various environmental
conditions and frequencies,ensuring safety and reliability in large industrial spaces.
